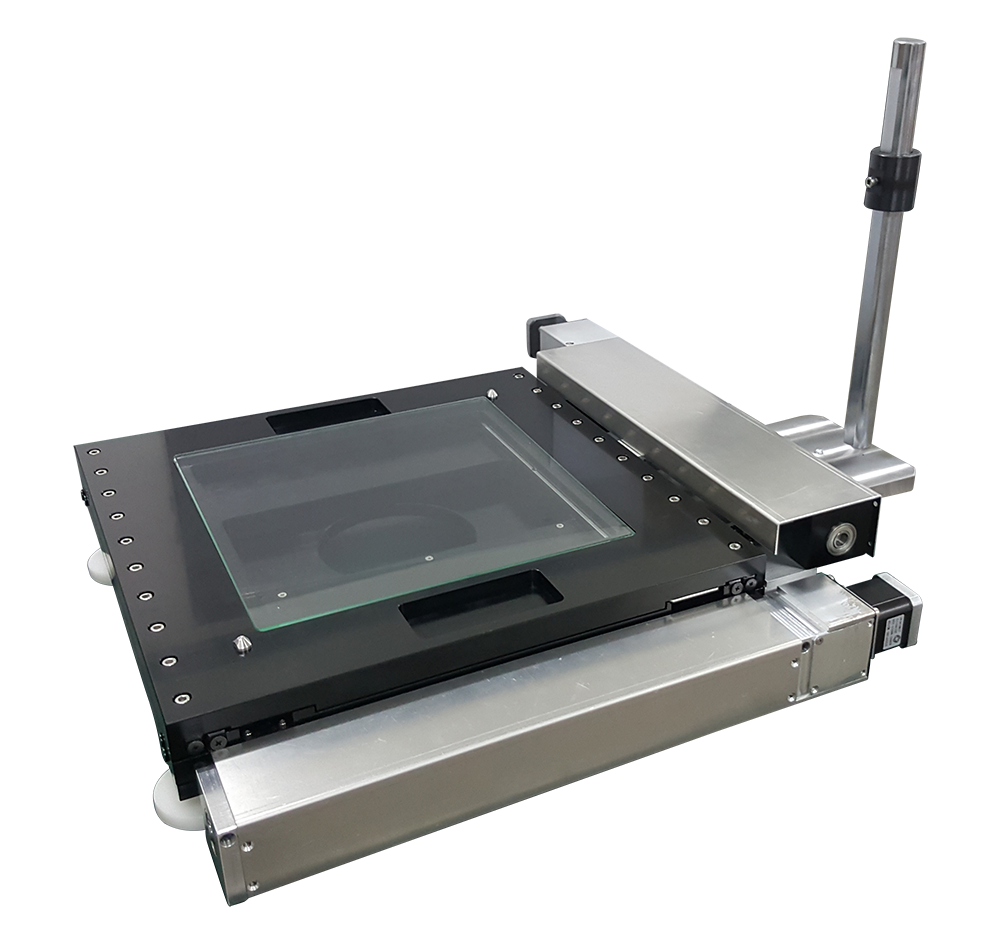

MOTORIZED XY STAGE - MXY200

Description

Introducing MXY200, an XY stage equipped with motors, controlling motion on Carthesian axes and is an ideal solution, replacing manual XY handling.

MXY200 requires minimal investment layout and provides cost-effective solution to achieve better precision, accuracy and productivity.

Applications

Designed to work with diverse optical inspection systems.

For inspecting the following loaded materials such as Substrate, Wafer, Leadframe, etc.

Configurable with
• 6in/8in Jigs

• PCB Trays

• Device Trays

• Vacuum Chucks

Features

• Joystick Controlled Motion

• Selectable 3-Speed Controls

• Travel Stroke Optimal for Most Requirements

• Configurable With Diverse Optical Inspection Systems

• Integration With Top and/or Bottom Lighting

• Configurable With Variety of Loaded Material

• Simple Installation/Set-Up
